Lab Mini Soft Capsule Making Machine Electric for pharmaceutical
Quick Detail
| Overall Dimension |
1250×400×2300mm |
Driven Type |
Electric |
| Capacity |
22800 pcs/hour, 4r/min |
Material |
Stinless Steel |
| Application |
Food, pharmaceutical,softgel making machine |
Capsule shape |
OV, OB,etc |
Product Description

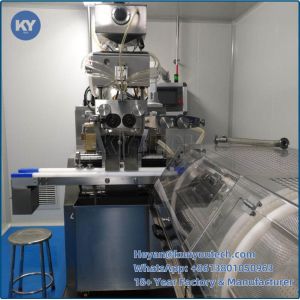

S403 R&D soft capsule making machine conform to the requirements of GMP standard. It is simple and efficient laboratory machine especially for R&D or small scale soft capsule production in laboratories and pharmaceutical researcging institutes.

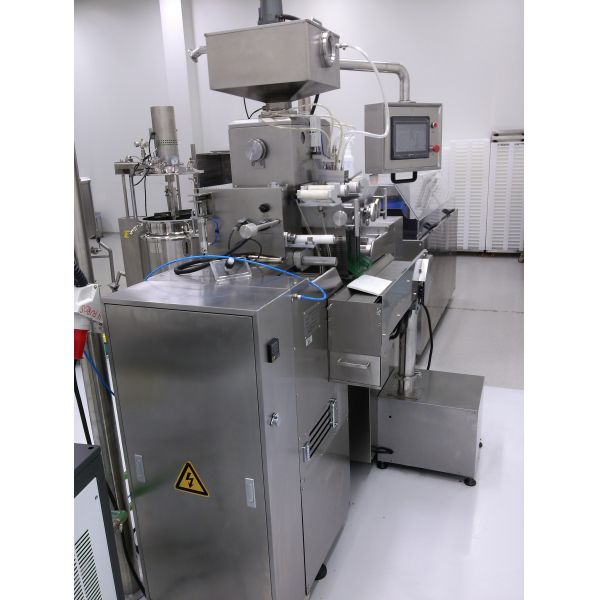

The whole set of the equipment is simple and efficient with small occupation. It includes the gelatin melting system, fill material system, soft capsule encapsulation machine and tumbler drying machine. All the material for the whole set of the equipment are well selected to meet the requirements of GMP, making it applicable for medical, food and cosmetic industries.
Applications:
It's widely used in pharmaceutical industries, cosmetic and food industries.
Specification
| Model |
S403 |
| Die roll size |
Ф80X100mm |
| Die roll speed |
0~5rpm |
| Overall dimension |
1250×400×2300mm |
| weight |
600kg |
| Power supply |
380V/240V,50/60HZ |
| Power of the main motor |
1.1kw |
| Power of the main machine |
3kw |
| S403 R&D softgel encapsulation machine |
| Shape |
Capsules/hour |
| 2r/min |
3r/min |
4r/min |
| 5#OV |
12600 |
18900 |
25200 |
| 8#OV |
11400 |
17100 |
22800 |
| 10#OV |
8640 |
12960 |
17280 |
| 11#OB |
7200 |
10800 |
14400 |
| 16#OB |
6840 |
10260 |
13680 |
| 20#OB |
6480 |
9720 |
12960 |
| 24#OB |
6120 |
9180 |
12240 |
| Paintball |
7200 |
10800 |
14400 |
| 6#round |
14280 |
21420 |
28560 |
Competitive Advantage:
- Filling Tolerance<±1.5%
- Easy to operate and clean
- Die roll speed:0~5rpm, steplessly adjustable
- Small load difference
- Gelatin ribbon micro lubrication system
